SHOWA SOKKI

Types and Specifications of Strain Gages

Kinds	Uniaxial Strain Gages	Biaixal Strain Gages	Triaxial Strain Gages	Stress Concentration Measurements
Pattern Code	N11...	N22...	N32...	R11,N51,R51...
Lead wire pre-attached	N11...VS...	N22...VS...	N32...VS...	R11,N51,R51...VS...
Basic pattern

Kinds	Uniaxial 45°	Diaphragm Type	Crack Detection	Pipe Gage
Purpose	Shearing stress and torque measurement	Pressure sensor	Crack propagation detection and analysis	Bolt spindle power measurement -Click-
Pattern Code	Z11,Z23...	Q44...	X11,C11...	P11...
Basic pattern

Tension & Compression Load Cells Selection Table

Type	Features and Applications	Capacity Range	Nonlinearity(%RO)	Rated Output(mV/V)	Compensated Temp.Range (℃)
SH	Shear beam type,Small,General Purpose	1kN,..10MN	0.15	0.75~1.5±1%	－10 to 60
SHE	Shear beam type,High output,General Purpose	5kN,..1MN	0.05 to 0.15	2.0±1%	－10 to 60
SHE-U	Shear beam type,Water Proof※1	5kN,..200kN	0.05	2.0±1%	－10 to 60
SHE-LH	Shear beam type,High & Low Temperature※1	5kN,..200kN	0.2	2.0±20%	－40 to 150
SHU	Shear beam type,High Accuracy	10kN,..1MN	0.03	2.0±1%	－10 to 60
RCT	Pipe type,General Purpose※2	10kN,..1MN	0.2	1.5±1%	－10 to 60
RCB	Coaxial beam type,General Purpose※3	50N,..5kN	0.15	1.5±1%	－10 to 60
RCT-E	Coaxial beam type,High Accuracy,General Purpose	10N,..5kN	0.05	1.5±1%	－10 to 45
DBU	Coaxial beam type,High Accuracy	50N,..5kN	0.02	2.0±1%	－10 to 60
BUX	Coaxial beam type,Low-profile & High Accuracy※1	100N,..5kN	0.012	2.0±0.1%	－10 to 50
CUX	Coaxial beam type,High Accuracy,Atmospheric pressure balance※1	200N,..5kN	0.02	1.5±0.3%	－10 to 60

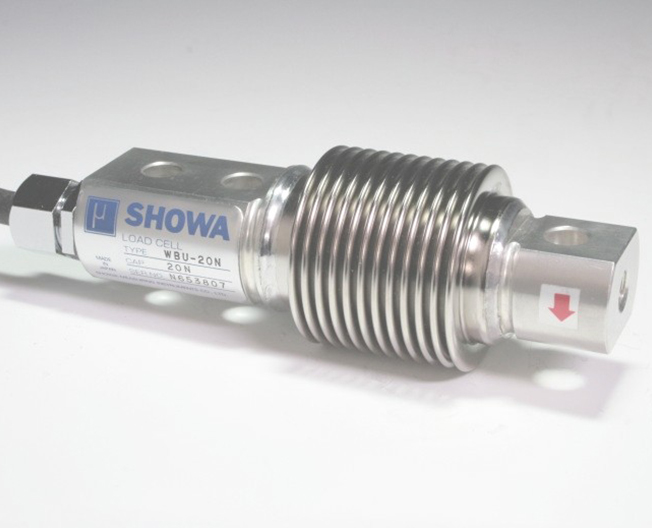

WBU	Beam type,High Accuracy,Metal bellows,General Purpose	10N,..2kN	0.015	2.0±1%	－10 to 60
WBE	Beam type,High Accuracy,High output,General Purpose	50N,..10kN	0.05	3.0±1%	－10 to 60
WBS	Beam type,High Accuracy,Small size,General Purpose	50N,..2kN	0.05	3.0±1%	－10 to 60
WBJ	Beam type,Ultralow-Capacity,High Accuracy,General Purpose	0.2N,..2N	0.035	1.0±10%	－10 to 45
WBF-J	Beam type,Ultralow-Capacity,High Accuracy,"G" Non-Sensitivity	0.3N,..1N	0.035	1.0±10%	－10 to 45
DBJ	Coaxial beam type,Ultralow-Capacity,High Accuracy,General Purpose	1N,..20N	0.025	2.0±5%	－10 to 45

* Items with Marks (※1) are produced only on order placed.
* Cap.500kN & 1MN with Marks (※2) will have Compression calibration data only.
* It's Compression calibration with Marks (※3) only. / Tension is optional calibration.

Compression Load Cells Selection Table

Type	Features and Applications	Capacity Range	Nonlinearity(%RO)	Rated Output(mV/V)	Compensated Temp.Range (℃)
RCU	Coaxial beam type,High Accuracy,General Purpose	10kN,..200KN	0.03	3.0±1%	－10 to 60
RCE	Column type,High output,General Purpose※1	5kN,..1MN	0.2	2.0±1%	－10 to 60
RC	Column type,Spherical mounting plate,General Purpose	10kN,..5MN	0.2	1.5±1%	－10 to 60

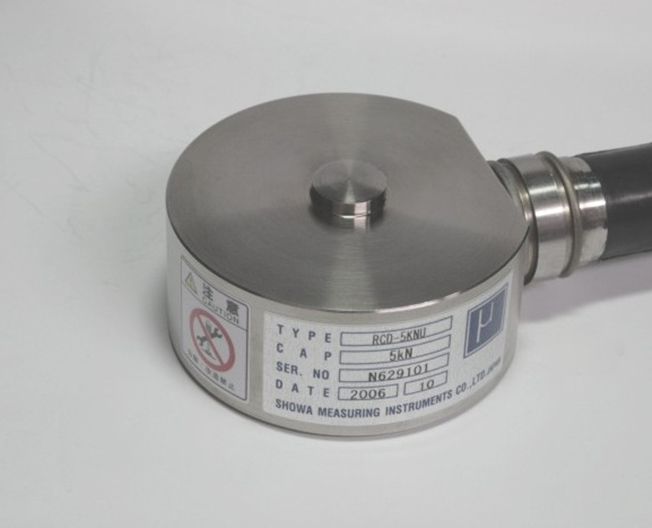

RCD	Coaxial beam type,General Purpose	500N,..200kN	0.15	2.0±1%	－10 to 60
RCD-U	Coaxial beam type,Water Proof,General Purpose	500N,..200kN	0.15	2.0±1%	－10 to 60
LSM	Beam type※1	5kN,..20kN	0.05	2.0±1%	－10 to 60
LSS	Coaxial beam type	5kN,..20kN	0.05	2.0±1%	－10 to 60
MRD	Ultra-small type,General Purpose	10N,..10kN	1	1.0±20%	0 to 60
MRU	Ultra-small type,General Purpose	200N,..1kN	2	1.0±20%	0 to 60
MR-251	Ultra-small type,General Purpose	20N,50N	0.5	1.0±20%	0 to 60
MR	Small type,General Purpose	5N,..100N	1	1.0±20%	0 to 60
HCS	Small & Washer type,measurement of axial power of bolts,General Purpose※1	25kN,..100kN	35	1.5 to 1.8±20%	－10 to 60
PHC	Center Hole type,General Purpose※1	10kN,..1MN	.02	1.5±1%	－10 to 60
HC	Center Hole type,General Purpose※1	10kN,..1MN	.02	1.5±1%	－10 to 60
HCW	Washer type,Rolling mill & Forging press machine※1	1MN,..5MN	1	1.0±1%	－10 to 60
HCWB	Low cost,Washer type,General Purpose※1	30kN,..500kN	1	1.0±1%	－10 to 60

* Items with Marks (※1) are produced only on order placed.

Type	Features and Applications	Capacity Range	Nonlinearity(%RO)	Rated Output(mV/V)	Compensated Temp.Range (℃)
RTU	Coaxial beam type,High Accuracy,General Purpose	10kN,..200MN	0.03	3.0±1%	－10 to 60
RTE	Coaxial beam type,High Accuracy,General Purpose※1	2kN,..200KN	0.05	3.0±1%	－10 to 60
RTD	Coaxial beam type,General Purpose	500N,..20kN	0.15	2.0±1%	－10 to 60
RTD-U	Coaxial beam type,Water Proof,General Purpose	500N,..20kN	0.15	2.0±1%	－10 to 60
RTB	Coaxial beam type,Attached Rod-end,General Purpose	50N,..5KN	0.2	1.5±1%	－10 to 60
MRDT	Ultra-small type,General Purpose	50N,..2kN	1	1.0±20%	0 to 60
DB	Coaxial beam type,High Accuracy,General Purpose	200N,..20kN	0.02	3.0±1%	－10 to 60
DBS	Coaxial beam type,High Accuracy,Low Cost,General Purpose	200N,..50kN	0.05	3.0±1%	－10 to 60

Torque Transducers Selection Table

Type	Features and Applications	Capacity Range	Nonlinearity(%RO)	Rated Output(mV/V)	Compensated Temp.Range (℃)
TP-L	Reaction Torque type,Ultralow-Capacity,Aluminum alloy※1	1,..100 N•cm	0.3	1.0±20 %	－10 to 40
TP-R	Reaction Torque type,Low-Capacity,High stiffness,Aluminum alloy※1	50,..1000 N•cm	0.2	1.0±20 %	－10 to 40
TP	Reaction Torque type,High stiffness,Flange at both ends,General Purpose	50,..20 kN•m	0.2	1.0±1 %	－10 to 60
TQP	Rotary Torque type(with Slip-ring assemblies),General Purpose※1	5,..20 KN•m	0.3	0.5,1.0,1.5±1 %	－10 to 60

* Items with Marks (※1) are produced only on order placed.

Pressure Transducers Selection Table

Type	Features and Applications	Capacity Range	Nonlinearity(%RO)	Rated Output(mV/V)	Compensated Temp.Range (℃)
HVS	High Accuracy type	0.5,..50MPa	0.2,0.3	1.0,1.5±1%	－10 to 60
HVU	General Purpose type	1,..50MPa	0.3,0.5	1.5,2.0±1%	－10 to 60
HVJS	Small & High Temperature type	1,..50MPa	0.5	1.0,1.5±20%	－10 to 150
HVJS-JG	Small & High Temperature type,Vibration-proof	1,..10MPa	0.5	1.0,1.5±20%	－10 to 150
HVM	Flush-Diaphragm type,General Purpose	1,..50MPa	0.5	1.0,1.5±20%	－10 to 60
HVH-B	High pressure range type	50,..200MPa	0.3	0.5±1%	－10 to 60
HVA	4~20mA output(3-wire)※1	5,..50MPa	0.5	4 to 20mA	0 to 60
HVML	Small & Low Cost,integrated type※1	1,..50MPa	0.5	1.5±20%	0 to 60

* Items with Marks (※1) are produced only on order placed.

Displacement Transducers Selection Table

Type	Features and Applications	Capacity Range	Nonlinearity(%RO)	Rated Output(mV/V)	Compensated Temp.Range (℃)
TCLA-A	Sliding resistance wire type	30,..300mm	0.2	1.5±1%	0 to 50
TCLA-B	Sliding resistance wire type,High output	50,100mm	0.2	2.5,5±1%	0 to 50
TCL-FA	Dial-gage type	5,..30mm	0.5	1.5±1%	5 to 40
TCL-S	Long stroke & Sliding resistance wire type	500,..2000mm	0.3	1.5±1%	0 to 50
TCL-M	Small & Cantilever type,Low Cost	5,..50mm	0.5	1.5±1%	0 to 50
TCL-L	High response & Inductance type※1	±5,..±100mm	0.3	1.5±10%	0 to 50
TCL-LR	Inductance type with spring in※1	2.5,..100mm	0.3	0.75,1.0,1.5±20%	0 to 50

* Items with Marks (※1) can be built only on order and exclusive amplifier(Type 5783) is necessary.

Acceleration Transducers Selection Table

Type	Features and Applications	Capacity Range	Nonlinearity(%RO)	Rated Output(mV/V)	Compensated Temp.Range (℃)
SAL	Uniaxial & High output type	±20m/s2,..±200m/s2	1	1.1±30%	－10 to 60
SAH	Uniaxial & High response type	±100m/s2,..±10km/s2	1	0.55±30%	－10 to 60
SALT	Triaxial & High output type※1	±20m/s2,..±200m/s2	1	1.1±30%	－10 to 60
SAHT	Triaxial & High response type※1	±100m/s2,..±10km/s2	1	0.55±30%	－10 to 60

* Items with Marks (※1) are produced only on order placed.

Special Transducer Selection Table

Type	Features and Applications	Capacity Range	Nonlinearity(%RO)	Rated Output(mV/V)	Compensated Temp.Range (℃)
MDF	6-Component force sensor※1	1 kN,..10 kN/Fx,..	0.4	1.2±15 %	0 to 60
MD2	High-accuracy 2 Component Load Cell※1	50 N,..500 N	0.025	1.0±1 %	－10 to 60
SK	Shift-knob force sensor※1	100 N,..500 N	0.1	1.0±20 %	－10 to 40
FR	Pedal-force sensor※1	100 N,..1 kN	0.2	1.5±20 %	－10 to 40
MMF	Torque & Spindle power Transducer※1	0.2 N•m /20 kN,..	0.2	1.0±1 %	－10 to 60
PSD	Load Cell with amplifier,Low Cost	2 N,..100 N	0.2	±10 V	0 to 40
DBV	Load Cell with amplifier,Low Cost	200 N,..10 kN	0.1	±10 V	0 to 40
Under Construction	Steering force and angle	50 N•m /±1440゜	0.3	1.0±20 %	0 to 60
MUF...	Unit of weight measurement(A)※1	30 N,120 N,240 N	0.02	2.0±5 %	－10 to 60
Under Construction	Unit of weight measurement(DUX)	200 N,..30 kN	0.03	1.0±1 %	－10 to 50
RCT-580	Load Cell for Positioning Stages	20 N,..1 kN	0.05	1.0±1 %	0 to 50
